The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel...

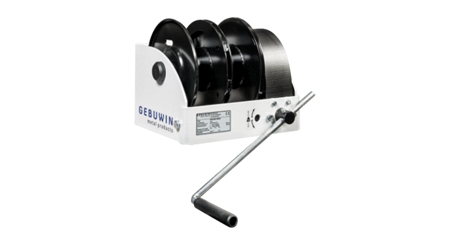

This Gebuwin worm gear hand winch has a double cable drum and a transmission that consists of a worm shaft and wheel...

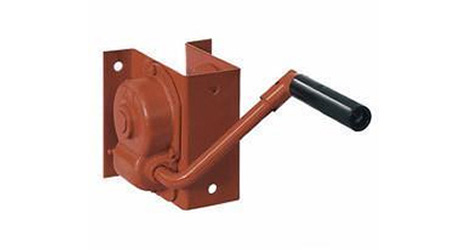

HA-WM - Haacon Worm Gear Hand Winch
Lifting capacity 250 kg, 400kg and 500 kg for wall mounting...

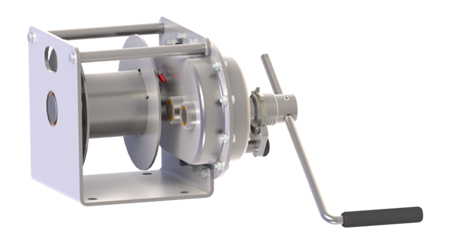

The Gebuwin range of hand driven spur gear winches are known for their robust construction. The cranks can be adjusted in length and are recoil-free...

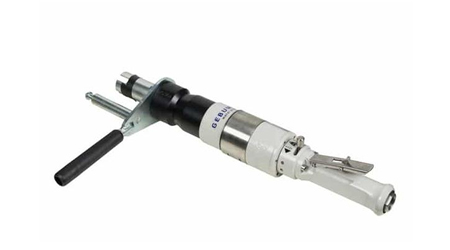

The auxiliary motors are used to provide an alternative for the hand operating of wormgear winches...
The Gebuwin pedestals are solidly manufactured and are specially developed for hand winch applications...
Robust and safe hoisting Davits, ready to hoist in only 5 seconds, adjustable crank...

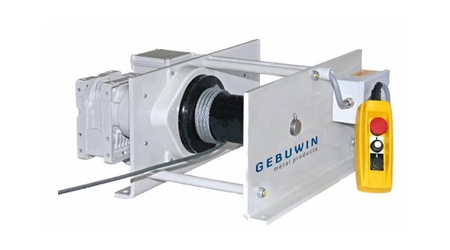

A range of electric worm gear winches in combination with 230 and 400 Volts that Gebuwin offers, start from 125 kg up to 3.200 kg...

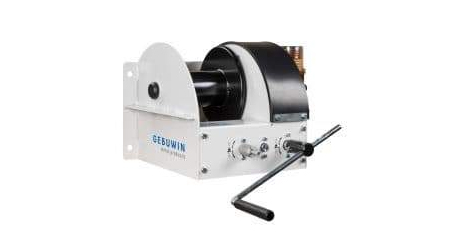

This Gebuwin drill winch can be operated with a drilling machine and is equipped with an automatic greasing system (AGS)...
When there is not electricity available on a specific location, this worm gear winch is an effective solution to hoist loads...
The webbing belt winch WB750 is a compact winch because it is especially designed to be used in combination with a webbing belt...
These Gebuwin worm gear hand winches are specially designed for marine and offshore environments. Because of its fully covered...
GO-CS100 Hand Winch - 190kg
Compact and sturdy self sustaining lifting winches for loads up to 190 kg...
GO-CS100MD - Removable Handle - Hand Winch
A variant of the CS100 winch supplied with removable handle...

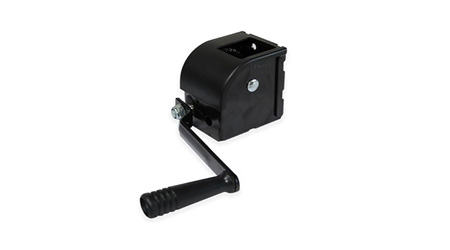

GO-CS100PS - Goliath Webbing Hand Winch
Compact and sturdy self sustaining lifting winches for loads up to 170 kg...
GO-CS200 Goliath Hand Winch - 200kg
Compact and sturdy self sustaining lifting winches for loads up to 200 kg...
GO-CS200MD - Removable Handle - Hand Winchg
Lifting capacity 250 kg Supplied with removable handle - For base or wall mounting...
Tiger HW-2000 Winch - Single or Twin Drum - Option for Loop Drive
Up to 2000lb/900kg capacity...
The Gebuwin range of hand driven worm gear winches are known for their robust construction. The hoisting capacities are calculated according to the first cable layer on the cable drum. All of the worm gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The worm gear winches are more safe than the spur gear winches, due to the fact that 50% of the braking is done by the friction loss in the transmission. Subsequently, the load on the pressure brake is greatly reduced. Due to the higher friction loss in the transmission, the worm gear winches have a lower performance efficiency than the spur gear winches. The winches have a static safety factor of minimum 4. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance free bearings. From the 2000 kg capacity winch and up, the winches are fitted with a second drive shaft, which makes it possible to work with two speeds. Most parts are made from steel and have been either painted or zinc plated. The winch with 7500 kg capacity has the worm-worm gear transmission completely protected by a sealed cover.
The coding is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment and the type of winch. The explanation for the coding is as follows:
Type coding:
WW = worm gear winches
Version coding:
D = cable drum for 1 cable
2D = cable drum for 2 or more cables
GD = grooved cable drum
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1
EV = electrolyte zinc plated, min. 6 microns
EX = ATEX 114 certified for zones 2 and 22
Gebuwin has two ranges of spur gear winches which are used for hoisting loads. All of the spur gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The hoisting capacities are calculated according to the first cable layer on the cable drum. Due to the minimal friction loss in the transmission, the spur gear winches have a high performance efficiency. Most parts are made from steel and have been either painted or zinc plated.
The coding is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment and the type of winch. The explanation for the coding is as follows:
Type coding:
HW = economy hand driven winches
TL = spur gear winches
Version coding:
D = cable drum for 1 cable
2D = cable drum for 2 cables
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1
EV = electrolyte zinc plated, min. 6 microns
SS = stainless steel 14301
EX = ATEX 114 certified for zones 2 and 22 (TC only)
